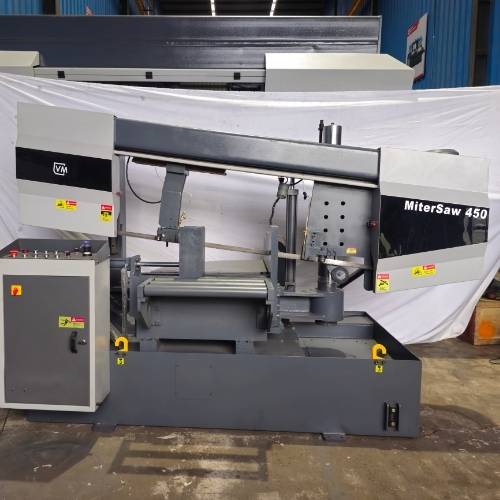

Miter Saw 450 (Double Column Semi-Automatic Band saw)

The Vijay Machinery Miter Saw 450 is a double-column semi-automatic bandsaw with a 450 mm cutting capacity, built for precise and efficient angled cuts on metal materials.

Its double-column design ensures stability and minimizes vibrations, while the semi-automatic function automates clamping and cutting. This model offers flexibility with manual angle adjustments, making it ideal for industrial applications requiring high precision and versatility in miter cutting.

Category:
Description

Technical Specification

Model MiterSaw450
Type Semi-Automatic Double Column, Semi-Automatic Miter Cutting Band Saw Machine
Cutting Capacity
– Round 450mm
– Square 450mm(H) x 600mm(W)
– 45 Degree 380mm(H) x 380mm(W)
– 60 Degree 380mm(H) x 290mm(W)

Blade Specifications
– Blade Size 6060x37x1.1mm
– Blade Speed 15 to 80 m/min

Motors
– Saw Motor 5HP, 3.75kW
– Hydraulic Motor 1HP, 0.75kW
– Coolant Pump 0.18HP

Machine Size (L)4340mm x (W)1800mm x (H_min)2150 x (H_max)2250mm
Machine Weight 2100 kg Approx.
Cutting Accuracy
– Taper Cutting Accuracy 0 to 100 mm OD = (± 0.2 to ±0.5 mm, depending on the surface of the material)
– Degree Accuracy (± 0.5° to ±1.0°, depending on the surface of the material)

Advanced Features
– Chip brush Effective chip removal from blade
– Blade Tension Manual
– Working Light Included
– Warm Gear Box Included
– Manual Adjust Blade Guide ARM

Standard Accessories
– Operation Tools Spanner Set
– Bi Metal Band Saw Blade Included

Components and Brand
– Saw Motor LHP (Laxmi Hydraulic PVT LTD)
– Coolant Pump Rajamani
– Electric Components Schneider and Siemens
– Sensor and Limit Switch Autonics, Taiwan
– Flow Control Valve Rexroth
– Hydraulic Direction Valve Yuken
– All Bearing SKF & FAG & NTN Japan
