Description
Technical Specification
| Category | Details |
|---|---|

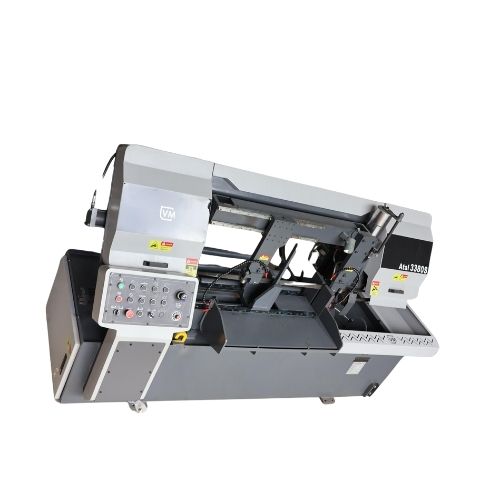

| Model | Atal3350S (EION-VX4) |
| Cutting Capacity | – Round: 330 mm – Square: 330 mm (H) x 500 mm (W) |
| Blade Specifications | – Size: 4600 x 34 x 1.1 mm – Speed: 15–80 (With Inverter VFD) |
| Motors | – Saw Motor: 7.5 HP / 5.5 kW – Hydraulic Motor: 1.0 HP / 0.75 kW |
| Tanks | – Hydraulic Oil Tank: 40 L – Coolant Tank: 60 L |
| Coolant Pump | 0.18 HP |
| Machine Dimensions | 2650 x 1320 x 1520 mm (W x L x H) |
| Machine Weight | 1800 kg |
| Cutting Accuracy | Taper Cutting Accuracy: 0 to 100 mm OD = (± 0.2 to ± 0.5 mm, depends on material surface) |
| Advanced Features | – Saw frame height selector gauge – Helical Gear Drive – Origin System – Auto Change Blade Speed – Hydraulic blade tension – Working light |
| Standard Accessories | – Operation Tools & Spanner Set – Bi Metal Band Saw Blade – Vibration Pad |
| Components and Brands | – Saw Motor: Lakshmi, UHP – Coolant Pump: Rajamani – Low Voltage Electric Components: Schneider – Flow Control Valve: Rexroth – Hydraulic Direction Valve: Yuken |
