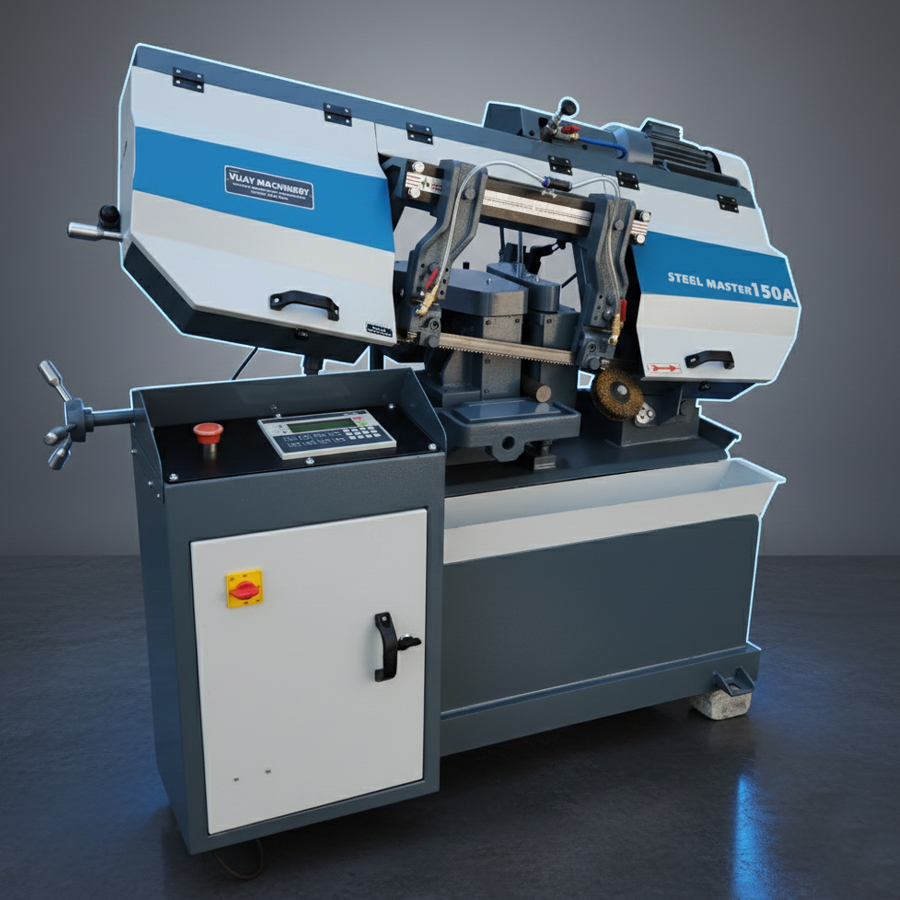

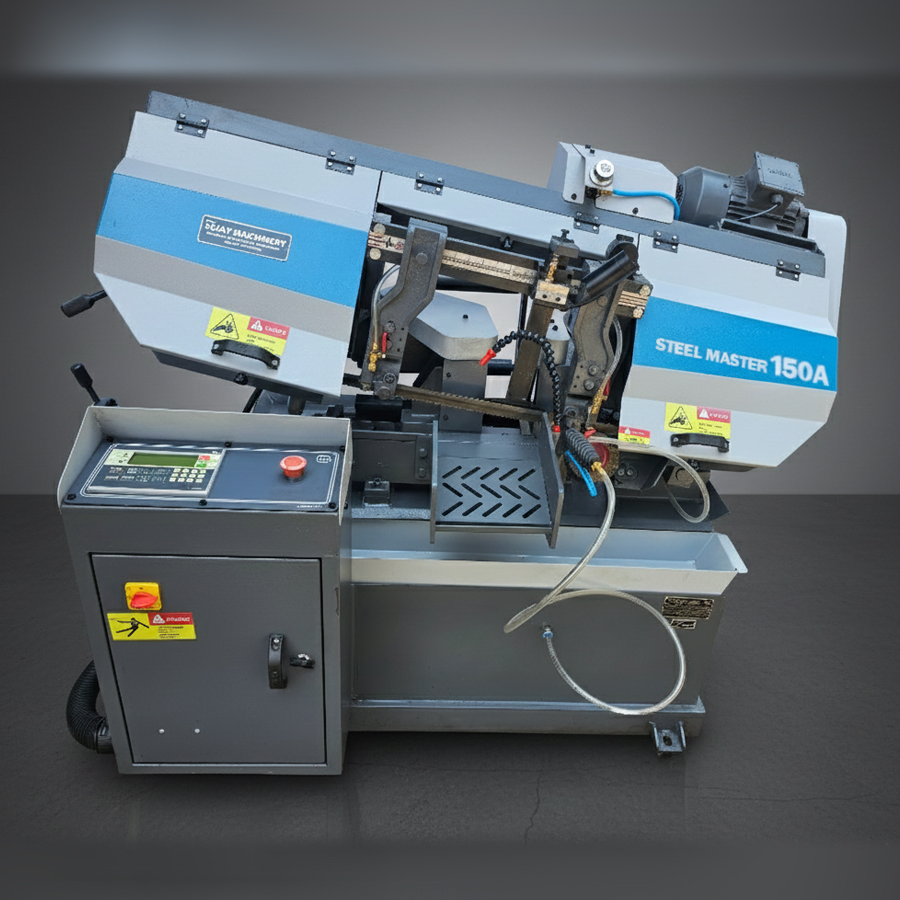

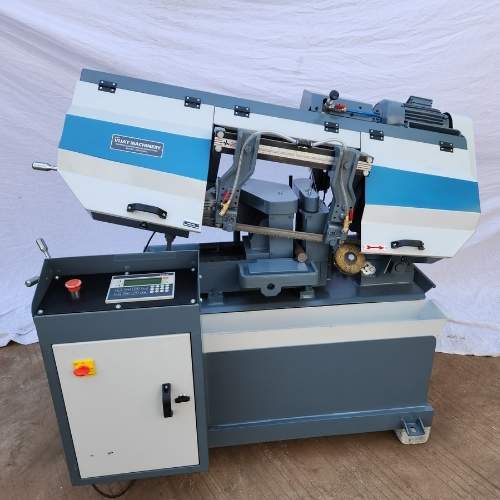

Classic 150A (Pivot type Fully-Automatic Band saw)

The Vijay Machinery Classic 150A is a pivot-type fully automatic bandsaw with a 150 mm cutting capacity, designed for precise, high-efficiency cutting with full automation in feeding, clamping, and cutting.

Its pivot design allows for flexible angle adjustments, making it ideal for industrial environments that require reliable and consistent performance with minimal operator involvement.

Category: BANDSAW MACHINE

Description

Description

Technical Specification

Category	Details

Machine Type

Automatic Swing Type, Fully-Automatic, High-Speed Band Saw Machine

Model

Steel Master 150A

Standard Specifications

Cutting Cap. (Round)

150mm

Cutting Cap. (Square)

150mm (H) x 150mm (W)

Blade Size

3000 x 27 x 0.9mm

Blade Speed

20-40-70

Saw Motor

1HP, 0.75kw

Hydraulic Motor

1HP, 0.75kw

Coolant Pump

0.18HP

Feed Stock

400mm

Machine Weight

450kg

Dimensions (WxLxH)

1500 x 1600 x 1130mm

Cutting Accuracy

Taper Cutting Accuracy

0 to 100 mm OD = (± 0.2 to ± 0.5 mm, depends on the surface of the material)

Length Accuracy

0 to 300 mm = (± 0.5 to ± 0.8 mm, depends on the surface of the material)

Advance Features

Auto shut off in case of blade breakage or slippage

Chip brush for effective chip removal from blade

Saw frame height selector gauge

Working light

Manual length setting

Material detection device

Chip collection basket

Standard Accessories

Operation tools & spanner set

Bi-metal band saw blade

Vibration pad

Components and Brands

Saw Motor

Lakhi, Lubi LHP

Coolant Pump

Rajamani

Liner Scale

Insize, Delos

Low Voltage Electric Components

Schneider and Siemens

Sensor and Limit Switch

Autonics, Taiwan

Flow Control Valve

Rexroth

Hydraulic Direction Valve

Yuken

All Bearing

SKF & FAG
