Description
Technical Specification
| Specification | Details |
|---|

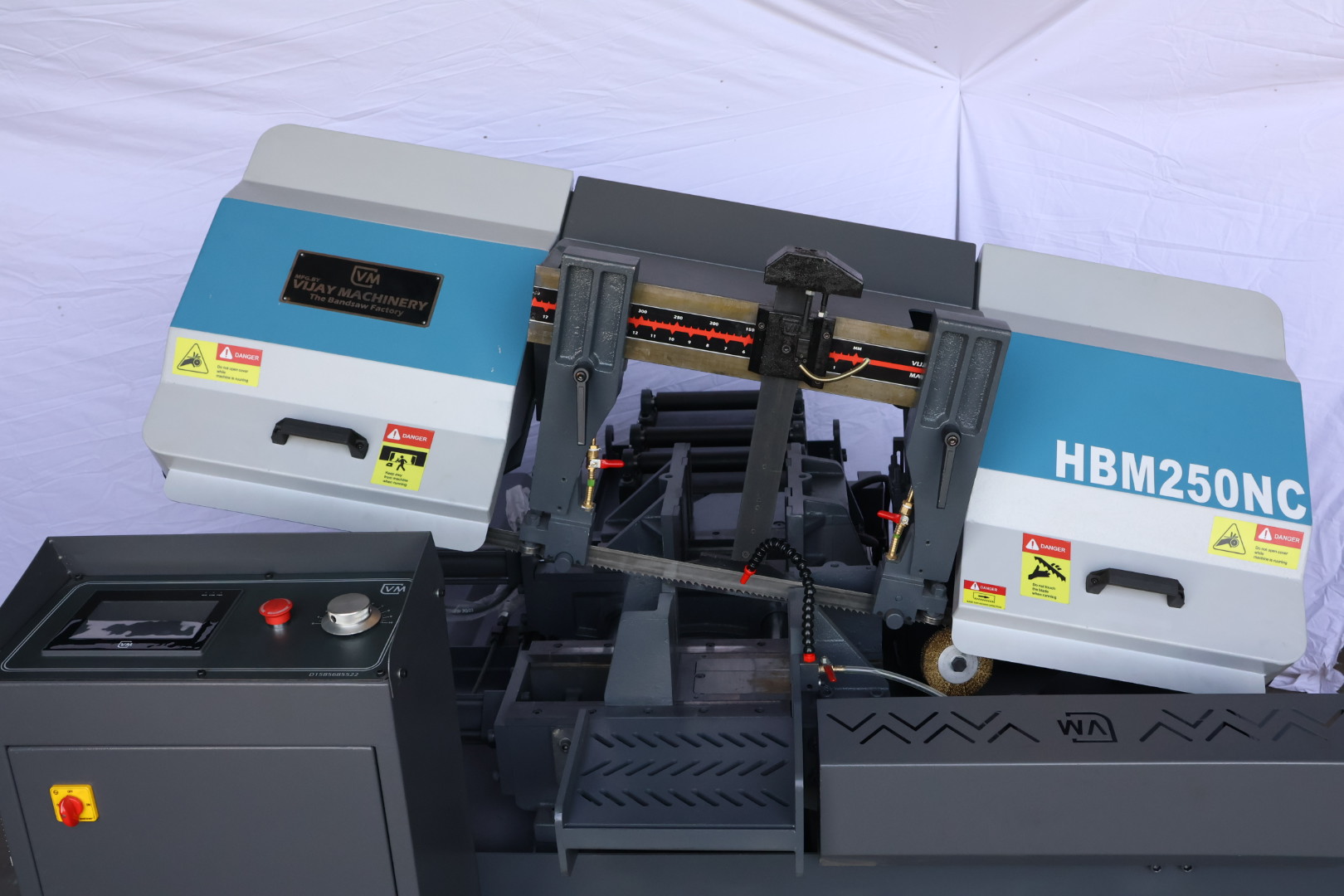

| Model | HBM250NC |
| Cutting Capacity (Round) | Ø 250 mm |
| Cutting Capacity (Square) | 250 x 250 mm |
| Cutting Capacity (Rectangular) | 150 x 250 mm |
| Power Supply | 3x440V 50Hz |
| Main Motor Power | 3HP – 2.25kW |
| Blade Speed | 15 – 80 m/min |
| Blade Dimensions | 3760 x 34 x 1.1 mm |
| Machine Weight | 1400 kg |
| Hydraulic Motor | 1HP – 0.75kW |
| Coolant Pump Power | 0.15HP |
| Coolant Tank Capacity | 60L |
| Hydraulic Tank Capacity | 40L |
| Multiple Feed | 400 x 9 Times |
| Length Max | 1950 mm |
| Width Max | 1880 mm |
| Height Max | 1250 mm |
| Table Height | 740 mm |
